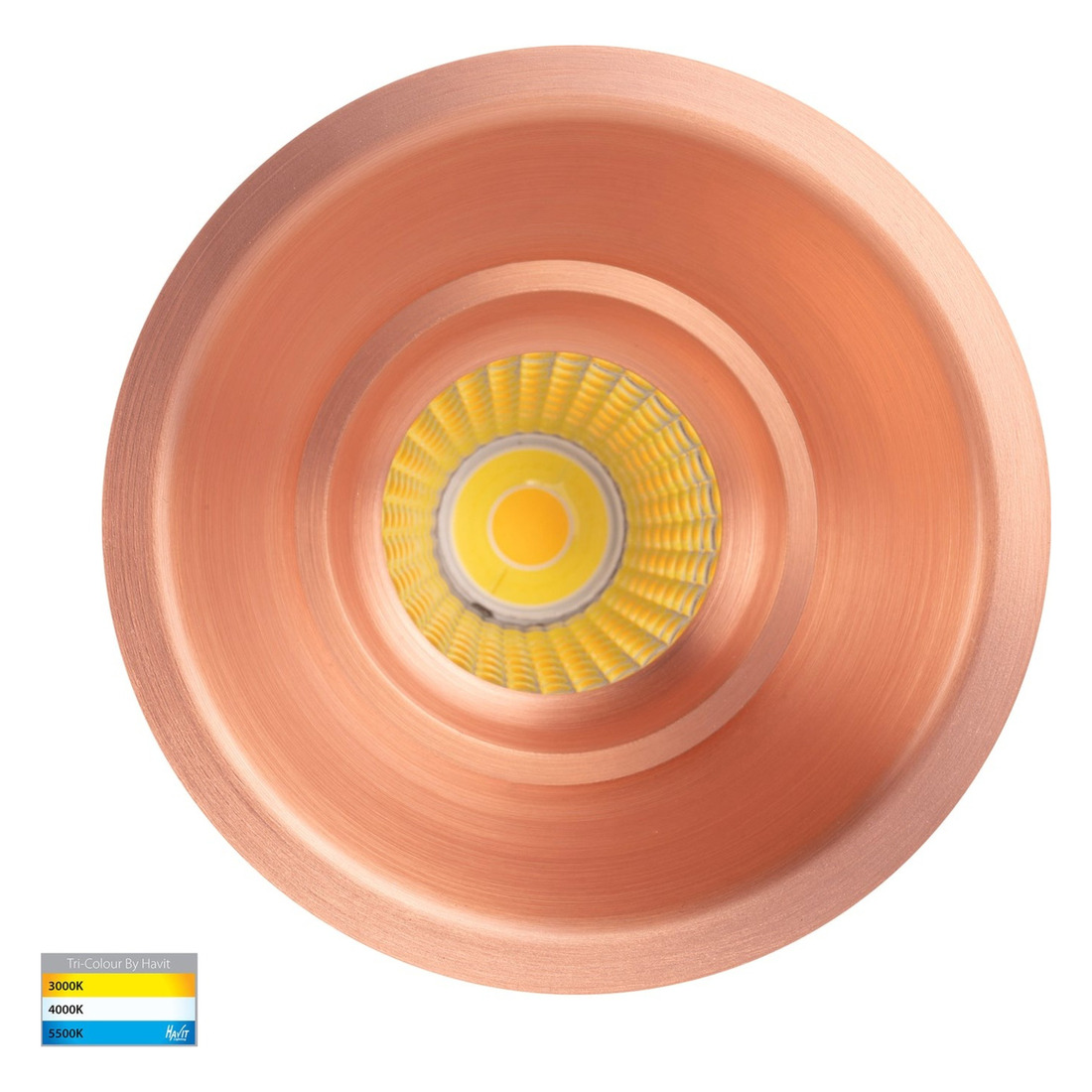

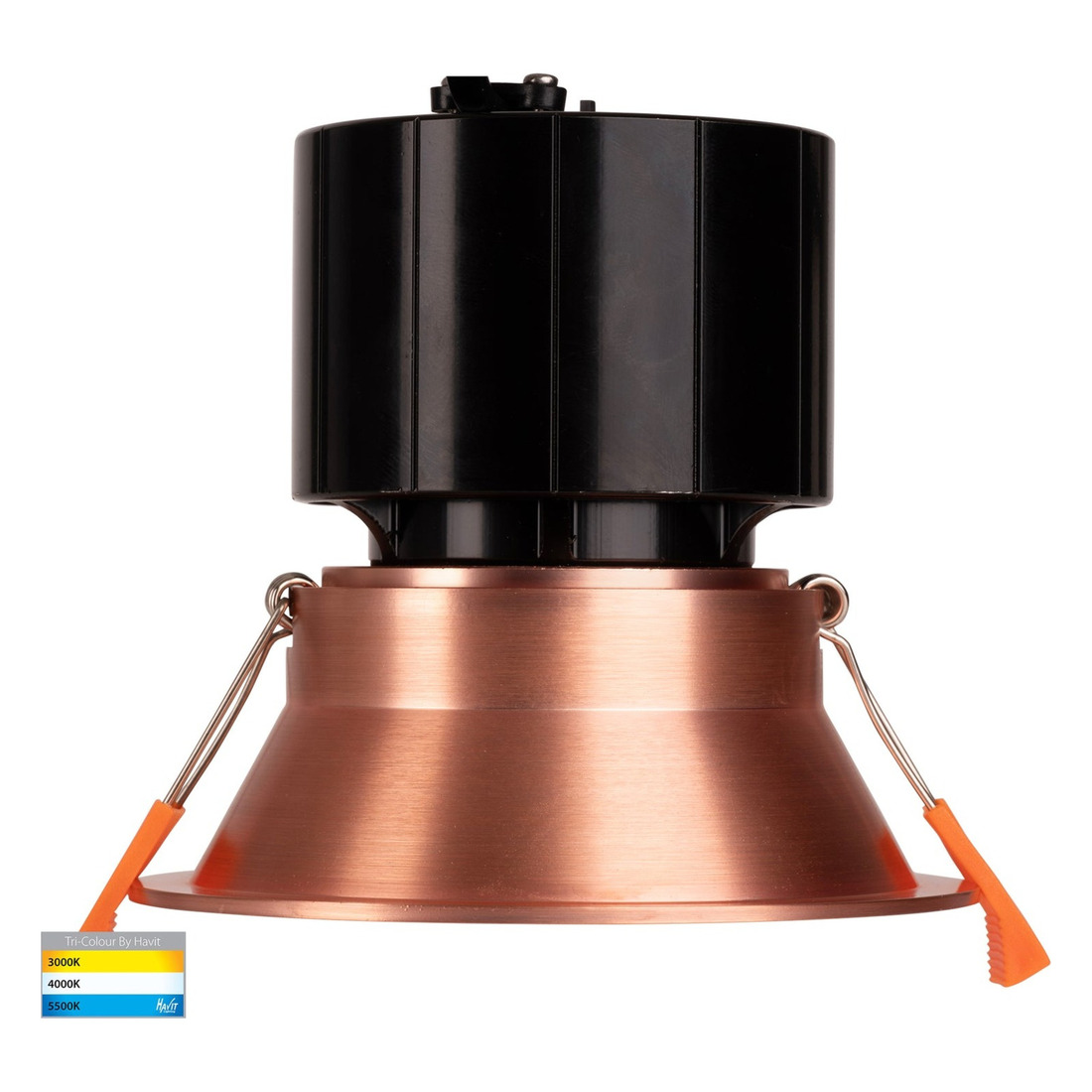

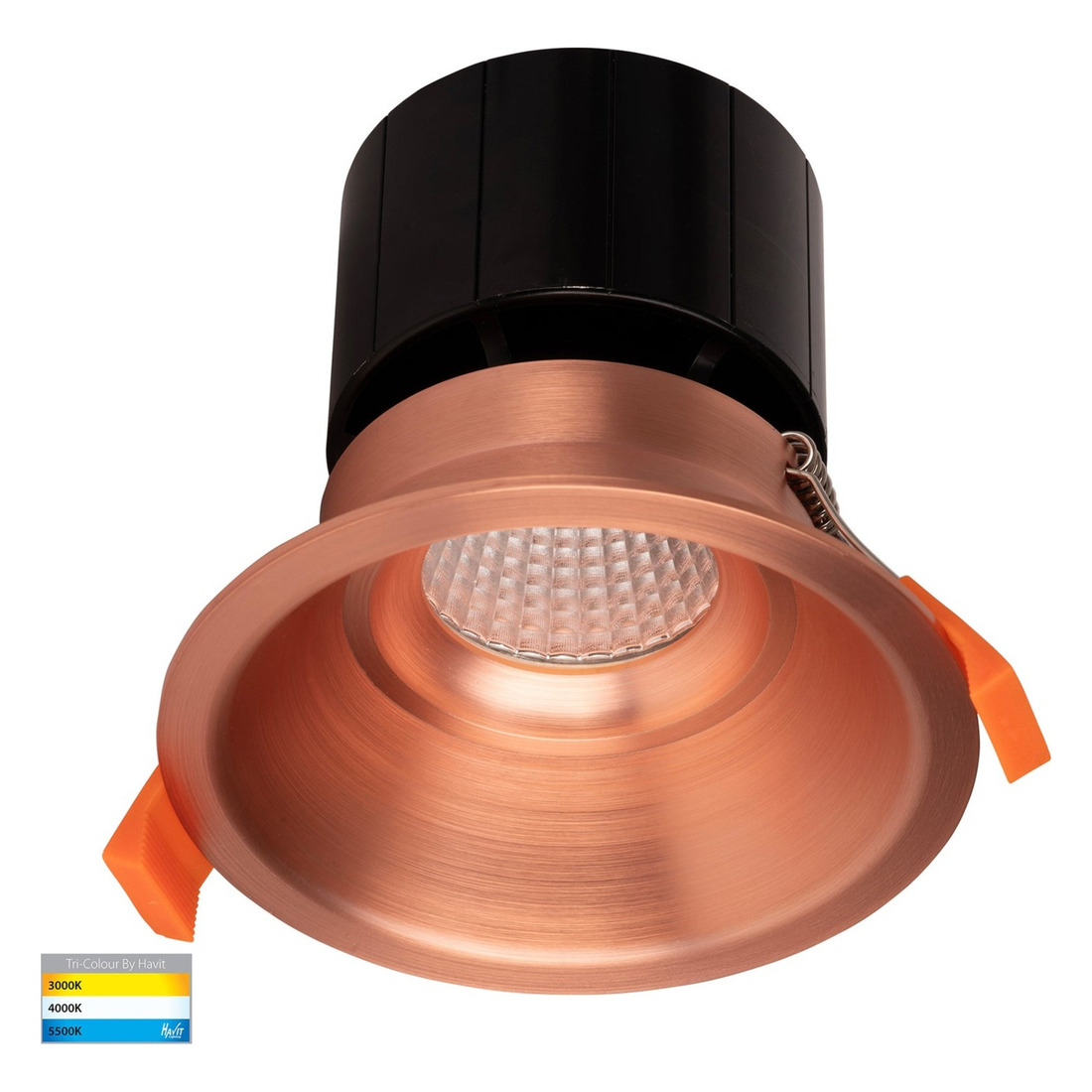

Prime Copper Coloured Fixed Deep LED Downlight

Reference HV5514T-CP
In Stock
$73.53
inc-GST
  • Operation Voltage: 240V
  • Light Source: Integrated LED
  • Wattage: 12W
  • Colour Temperature: Tri-colour (3000K / 4000K / 5700K)
  • Lumens: up to 913 lm
  • Beam Angle: 60°
  • Cutout: 90mm
  • IP Rating: IP54
  • Dimming: Dimmable
  • CRI: greater than 90
  • Material: Aluminium
  • Usage: Outdoor
  • 3-year replacement warranty



At a glance

Prime Copper Coloured Fixed Deep LED Downlight

HV5514T-CP  ·  90mm cutout · 60° beam · IP54 · Dimmable · up to 913 lm · CRI greater than 90  ·  Sintech Lighting

What makes the HV5514T-CP different

The Havit HV5514T-CP is built for ceilings where a standard downlight is too large — only a 90mm cutout is required. That makes it a strong fit for bulkheads, narrow ceiling voids, cupboard lighting zones and anywhere you want light without a wide trim ring on show.

Inside the fixed trim is a 12W integrated LED module — the lamp and driver are part of the fitting, so there are no GU10 or MR16 lamps to stock or replace.

Dimmable dimming connects this downlight to building automation, scene plates and energy-saving profiles — not just a wall dimmer.

Key features

Cutout

90mm

Mini format for tight ceiling spaces

Beam angle

60°

Even spread for general lighting

Colour temp

Tri-colour (3000K / 4000K / 5700K)

Dimming

Dimmable

Automation & scene control ready

IP rating

IP54

Splash-resistant for bathrooms & laundries

Colour rendering

CRI greater than 90

Accurate colour under the beam

Driver

Flicker-free output

Comfortable for long exposure

Power

12W integrated LED

240V input

Colour temperature & light output

Select the white tone on the fitting — output varies slightly with each setting.

Colour temperatureLight output
3000K839 lm
4000K913 lm
5500K841 lm

Technical specifications

SKUHV5514T-CP
Input voltage240V
Wattage12W
Light sourceIntegrated LED
Colour temperatureTri-colour (3000K / 4000K / 5700K)
Lumensup to 913 lm
Beam angle60°
Cutout90mm
IP ratingIP54
DimmingDimmable
CRIgreater than 90
MaterialAluminium
UsageOutdoor

Common questions

What cutout size does HV5514T-CP need?

A 90mm ceiling cutout. The fixed trim sits flush for a clean mini downlight look.

Is HV5514T-CP dimmable?

Yes — Dimmable dimming. Pair with a compatible DALI controller or gateway for scenes and automation.

What is the brightest output?

Up to 841 lm at 5500K. Warm settings (2700K) start around 839 lm.

Can I use this in a bathroom?

IP54 rating suits bathrooms, laundries and other interior areas where splash resistance is required.

Do I need to buy lamps separately?

No. HV5514T-CP has a built-in 12W LED module — the light source is integrated in the fitting.

What beam spread does it give?

60° beam angle for practical general-light coverage from a compact trim.

3-year replacement warranty

Supplied by Sintech Lighting — Australian supplier of Havit, Telbix, CLA and Oriel.
