HV5522T-WHT - HV5522T-White | HV5522T-White-24V - HV5522T-WHT

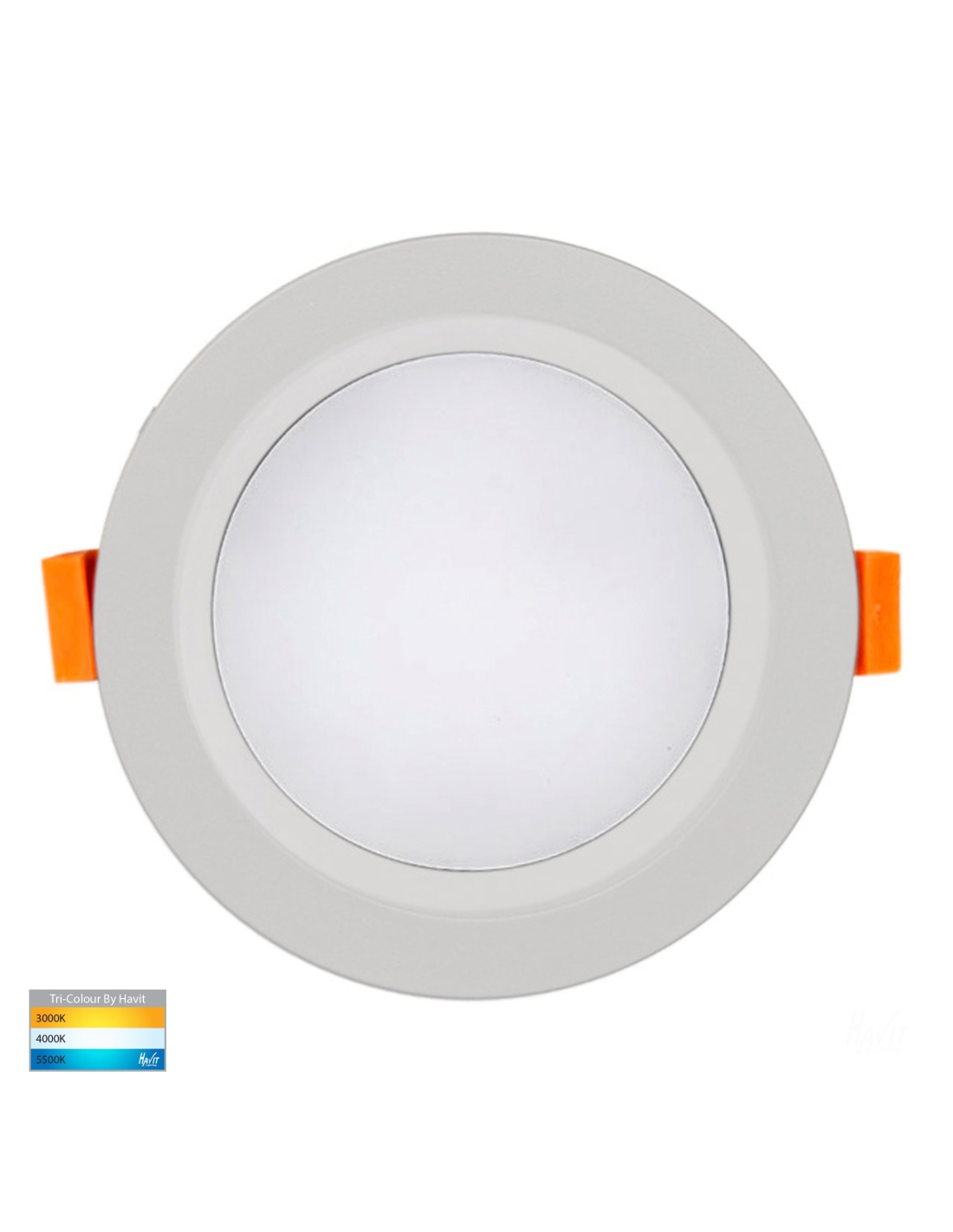

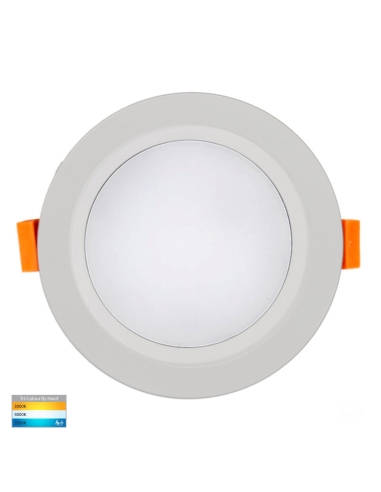

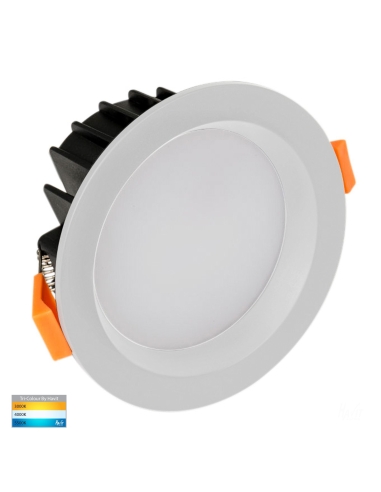

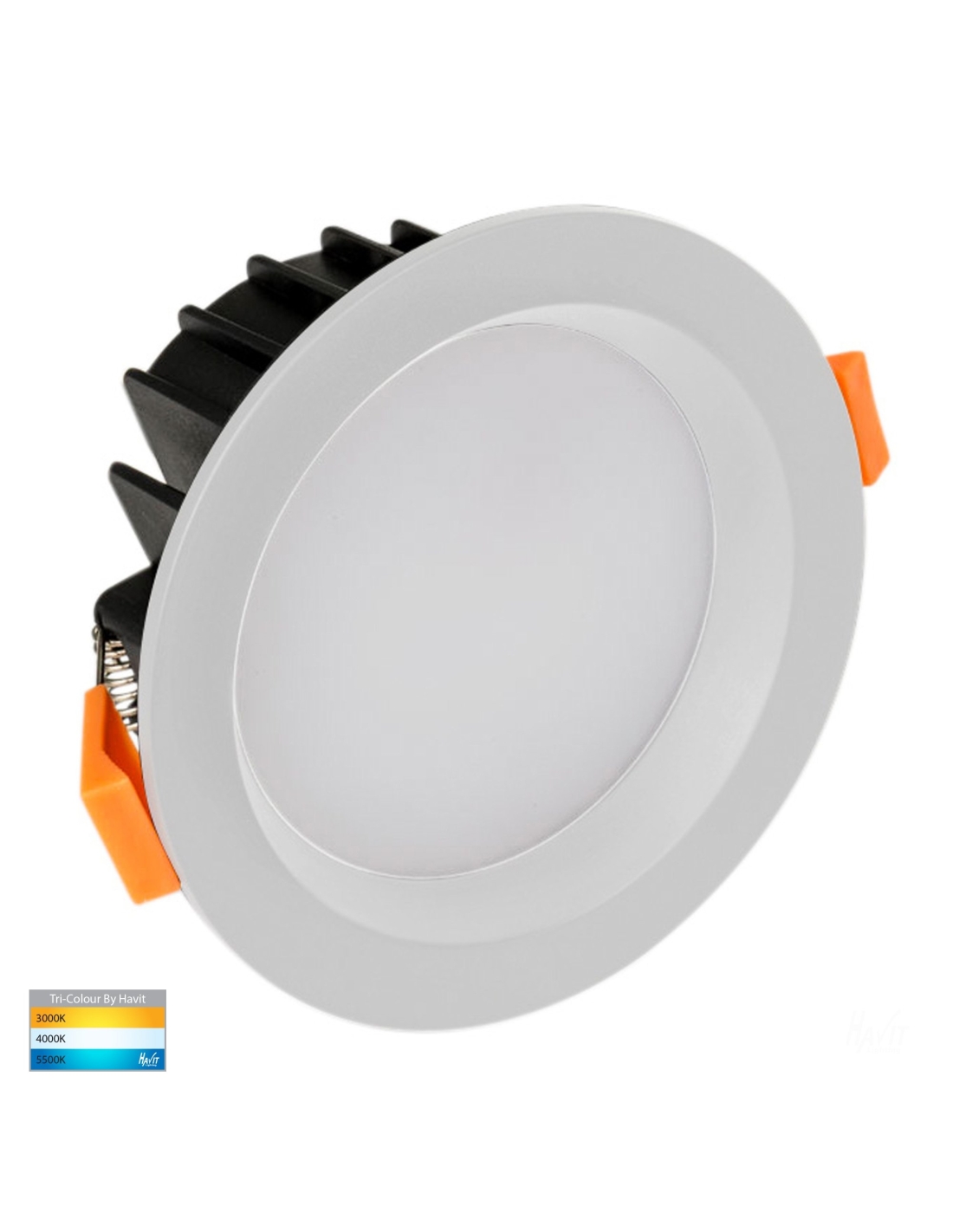

HV5522T-White | HV5522T-White-24V - Polly Polycarbonate White Fixed LED Downlight

Name: HV5522T-WHT - HV5522T-White | HV5522T-White-24V - Polly Polycarbonate White Fixed LED Downlight
Brand: Havit Lighting
SKU: HV5522T-WHT
Price: 30.78 AUD
Availability: InStock

Reference HV5522T-WHT

In Stock

$30.78

inc-GST

Operation Voltage: 24V DC
Light Source: Integrated LED
Wattage: 8W
Colour Temperature: Tri-colour (3000K / 4000K / 5700K)
Lumens: up to 750 lm
Beam Angle: 120°
Cutout: 90mm
IP Rating: IP54
Dimming: Triac
CRI: greater than 80
Colour: White
Material: Polycarbonate
Usage: Indoor
3-year replacement warranty

Description
Product Details

At a glance

HV5522T-WHT - HV5522T-White | HV5522T-White-24V - Polly Polycarbonate White Fixed LED Downlight

HV5522T-WHT · 90mm cutout · 120° beam · IP54 · Triac · up to 750 lm · CRI greater than 80

HV5522T-WHT - HV5522T-White | HV5522T-White-24V - Polly Polycarbonate White Fixed LED Downlight

Havit Lighting | SKU HV5522T-WHT

What makes the HV5522T-WHT different

The Havit HV5522T-WHT is built for ceilings where a standard downlight is too large — only a 90mm cutout is required. That makes it a strong fit for bulkheads, narrow ceiling voids, cupboard lighting zones and anywhere you want light without a wide trim ring on show.

Inside the fixed white trim is a 8W integrated LED module — the lamp and driver are part of the fitting, so there are no GU10 or MR16 lamps to stock or replace.

Triac dimming connects this downlight to building automation, scene plates and energy-saving profiles — not just a wall dimmer.

Key features

Cutout

90mm

Mini format for tight ceiling spaces

Beam angle

120°

Even spread for general lighting

Colour temp

Tri-colour (3000K / 4000K / 5700K)

Dimming

Triac

Automation & scene control ready

IP rating

IP54

Splash-resistant for bathrooms & laundries

Colour rendering

CRI greater than 80

Accurate colour under the beam

Power

8W integrated LED

240V input

Colour temperature & light output

Select the white tone on the fitting — output varies slightly with each setting.

Colour temperature	Light output
3000K	635 lm
4000K	750 lm
5500K	715 lm

Technical specifications

4V DC

SKU	HV5522T-WHT
Wattage	8W
Light source	Integrated LED
Colour temperature	Tri-colour (3000K / 4000K / 5700K)
Lumens	up to 750 lm
Beam angle	120°

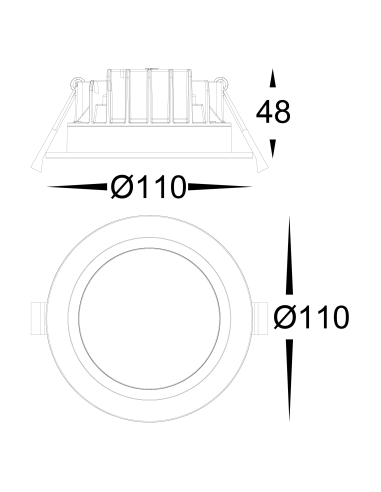

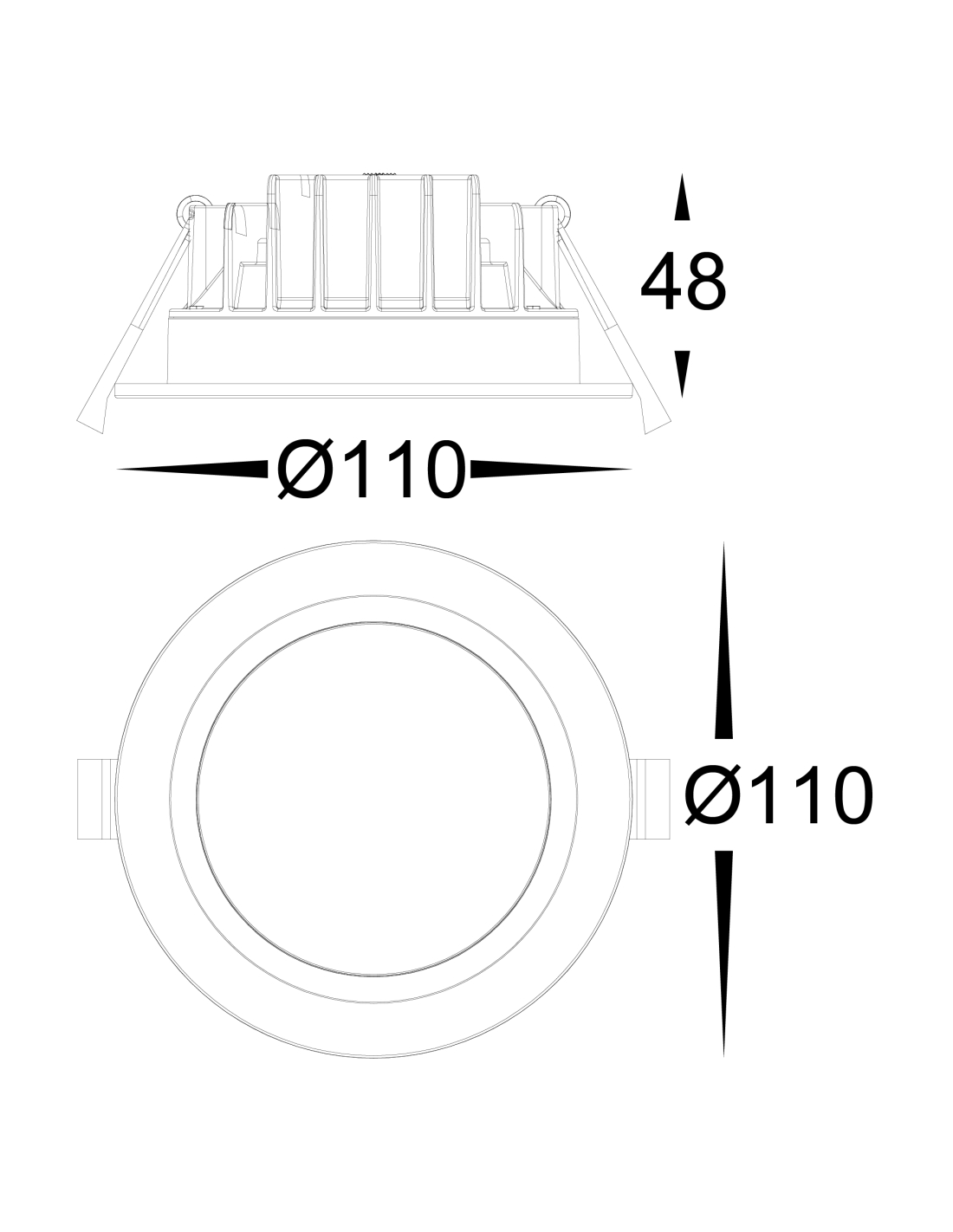

Cutout	90mm
IP rating	IP54
Dimming	Triac
CRI	greater than 80
Colour	White
Material	Polycarbonate
Usage	Indoor

Common questions

What cutout size does HV5522T-WHT need?

A 90mm ceiling cutout. The fixed trim sits flush for a clean mini downlight look.

Is HV5522T-WHT dimmable?

Yes — Triac dimming. Pair with a compatible DALI controller or gateway for scenes and automation.

What is the brightest output?

Up to 715 lm at 5500K. Warm settings (2700K) start around 635 lm.

Can I use this in a bathroom?

IP54 rating suits bathrooms, laundries and other interior areas where splash resistance is required.

Do I need to buy lamps separately?

No. HV5522T-WHT has a built-in 8W LED module — the light source is integrated in the fitting.

What beam spread does it give?

120° beam angle for practical general-light coverage from a compact trim.

3-year replacement warranty

Supplied by Sintech Lighting — Australian supplier of Havit, Telbix, CLA and Oriel.

Globe Colour Temperature: 3K 4K 5K
Voltage: 240V
Description: POLLY - HV5522T-WHT - White Fixed PC Downlight 90mm Cutout 240v 3K 4K 5K EAN:9350418013897 - 8w SMD TRI Colour
