- New

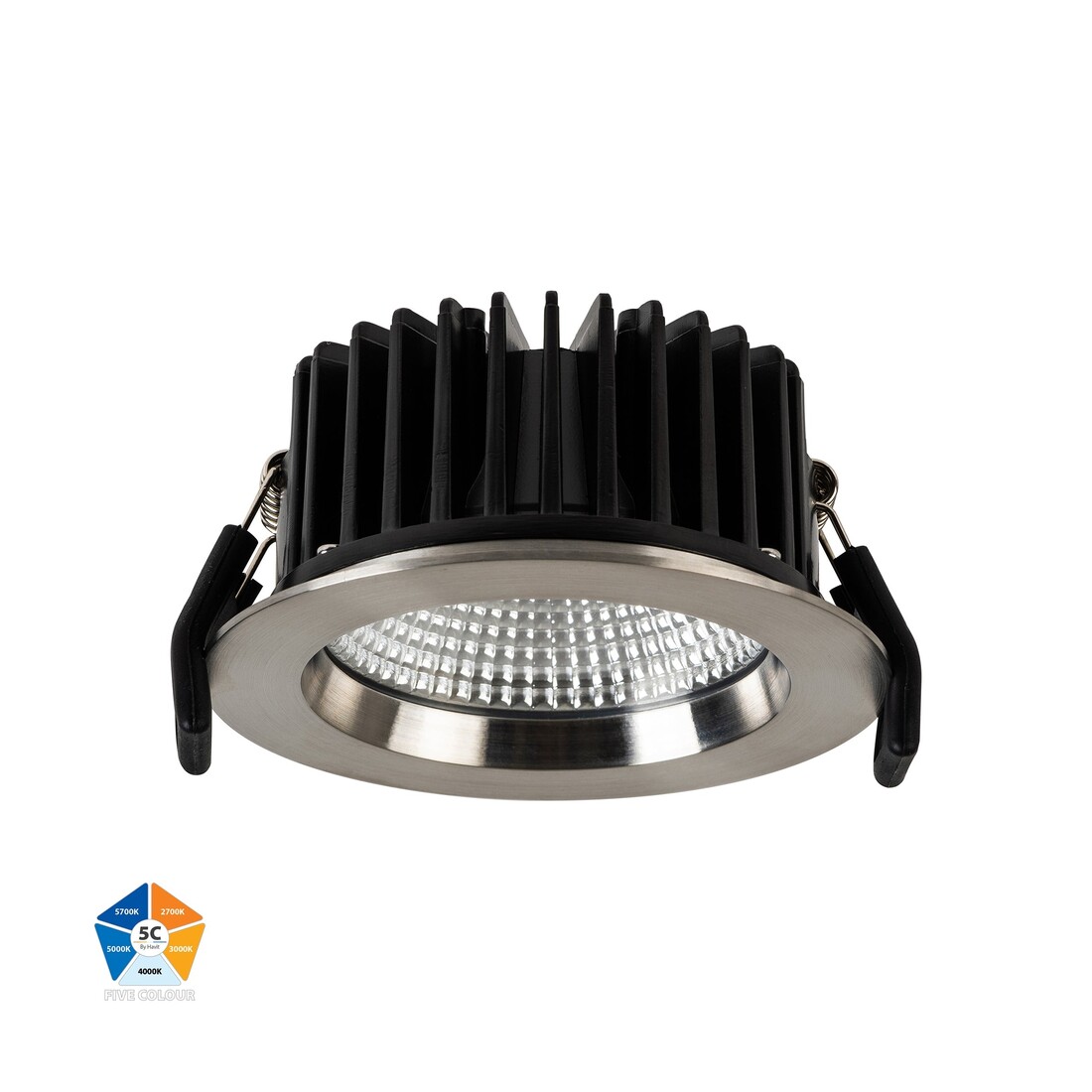

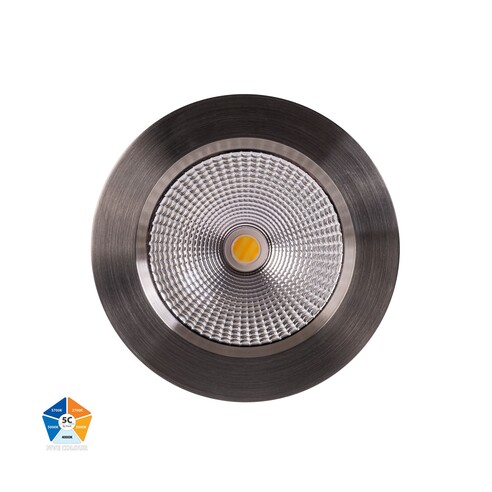

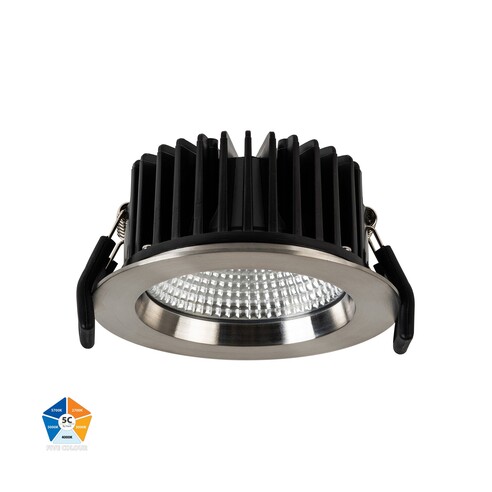

Ora 316 Stainless Steel Fixed 5 Colour LED Downlight
Reference
HV5530S-SS316
In Stock
$135.26
- Operation Voltage: 240V
- Light Source: Integrated LED
- Wattage: 12W
- Colour Temperature: 2700K / 3000K / 4000K / 5000K / 5700K
- Lumens: up to 1105 lm
- Beam Angle: 60°

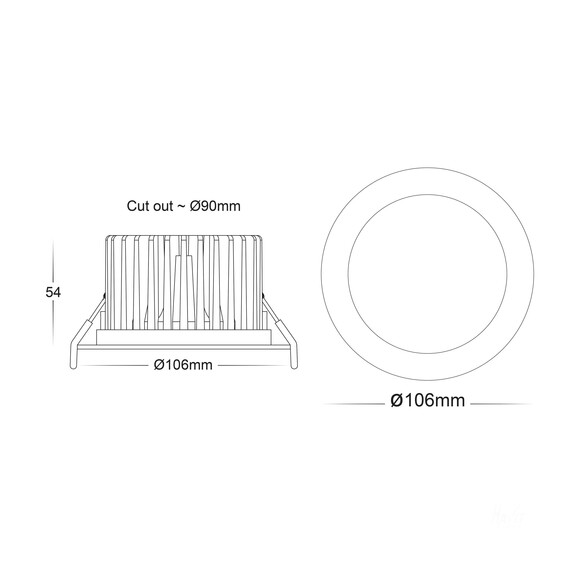

- Cutout: 90mm
- IP Rating: IP54
- Dimming: Triac
- Material: Aluminium
- Usage: Indoor
- 3-year replacement warranty
At a glance
HV5530S-SS316 - Ora 316 Stainless Steel Fixed 5 Colour LED Downlight
HV5530S-SS316 · 90mm cutout · 60° beam · IP54 · Triac · up to 1105 lm
HV5530S-SS316 - Ora 316 Stainless Steel Fixed 5 Colour LED Downlight
Havit | SKU HV5530S-SS316
What makes the HV5530S-SS316 different

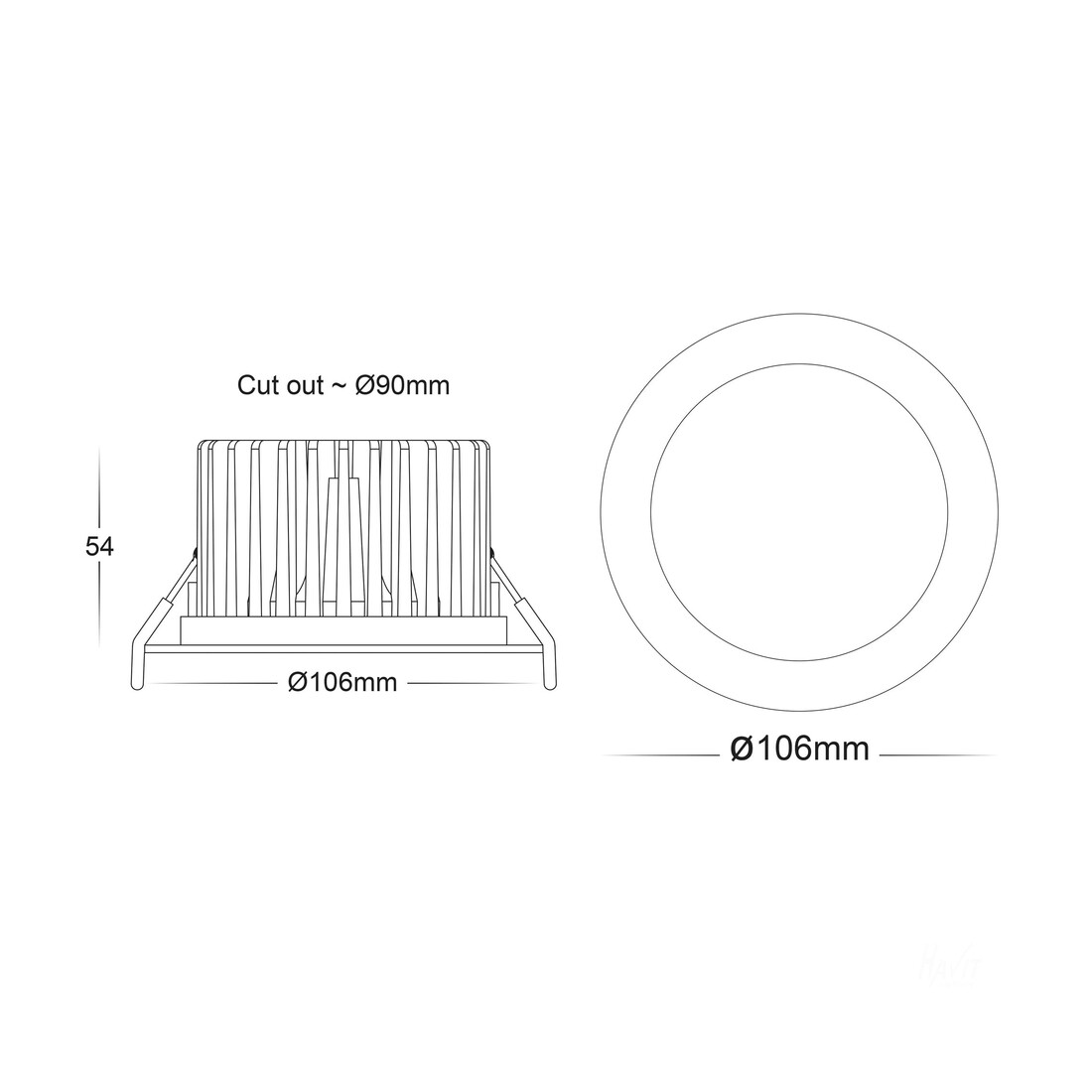

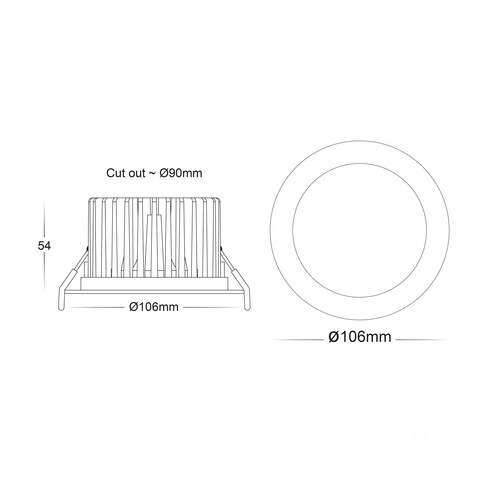

The Havit HV5530S-SS316 is built for ceilings where a standard downlight is too large — only a 90mm cutout is required. That makes it a strong fit for bulkheads, narrow ceiling voids, cupboard lighting zones and anywhere you want light without a wide trim ring on show.

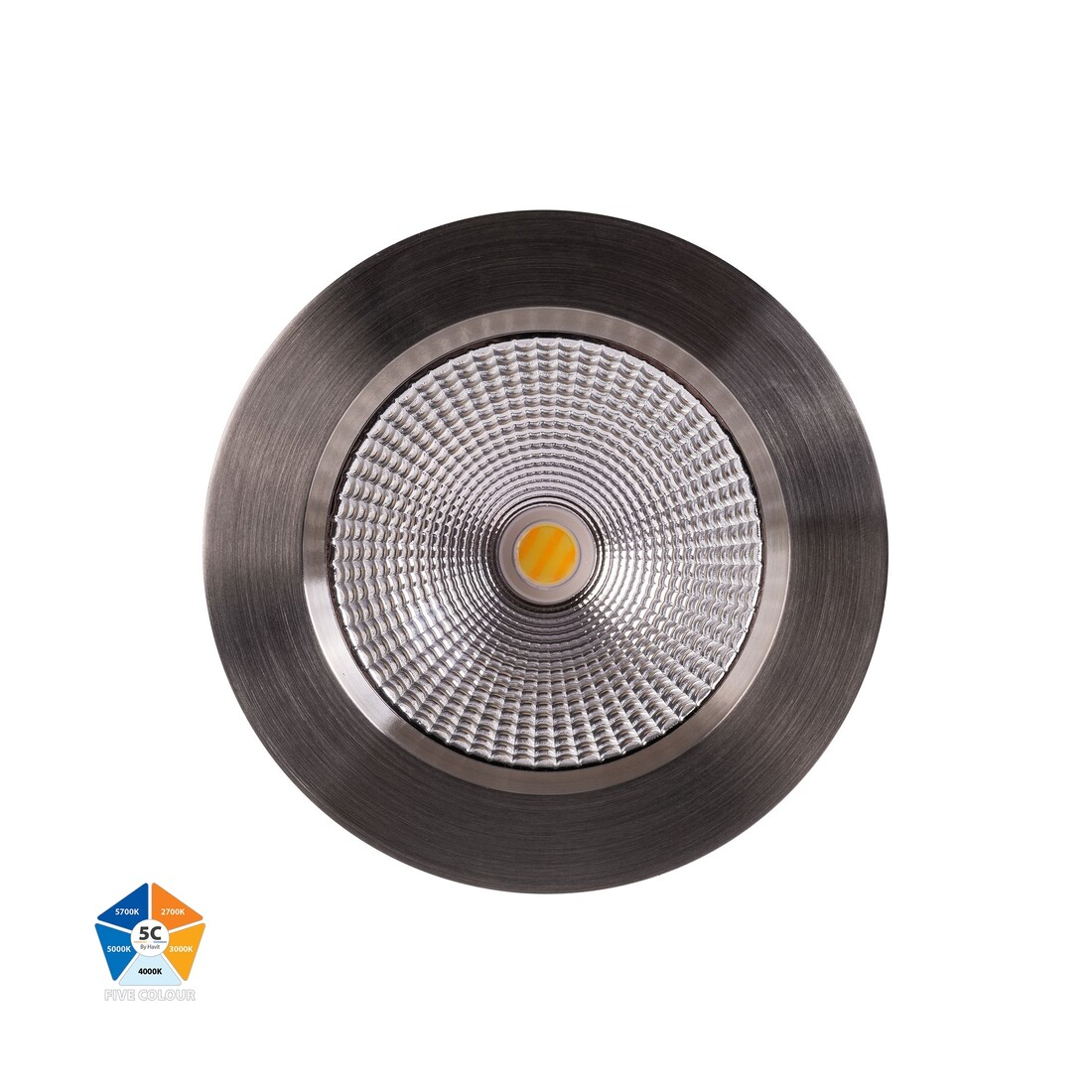

Inside the fixed trim is a 12W integrated LED module — the lamp and driver are part of the fitting, so there are no GU10 or MR16 lamps to stock or replace.

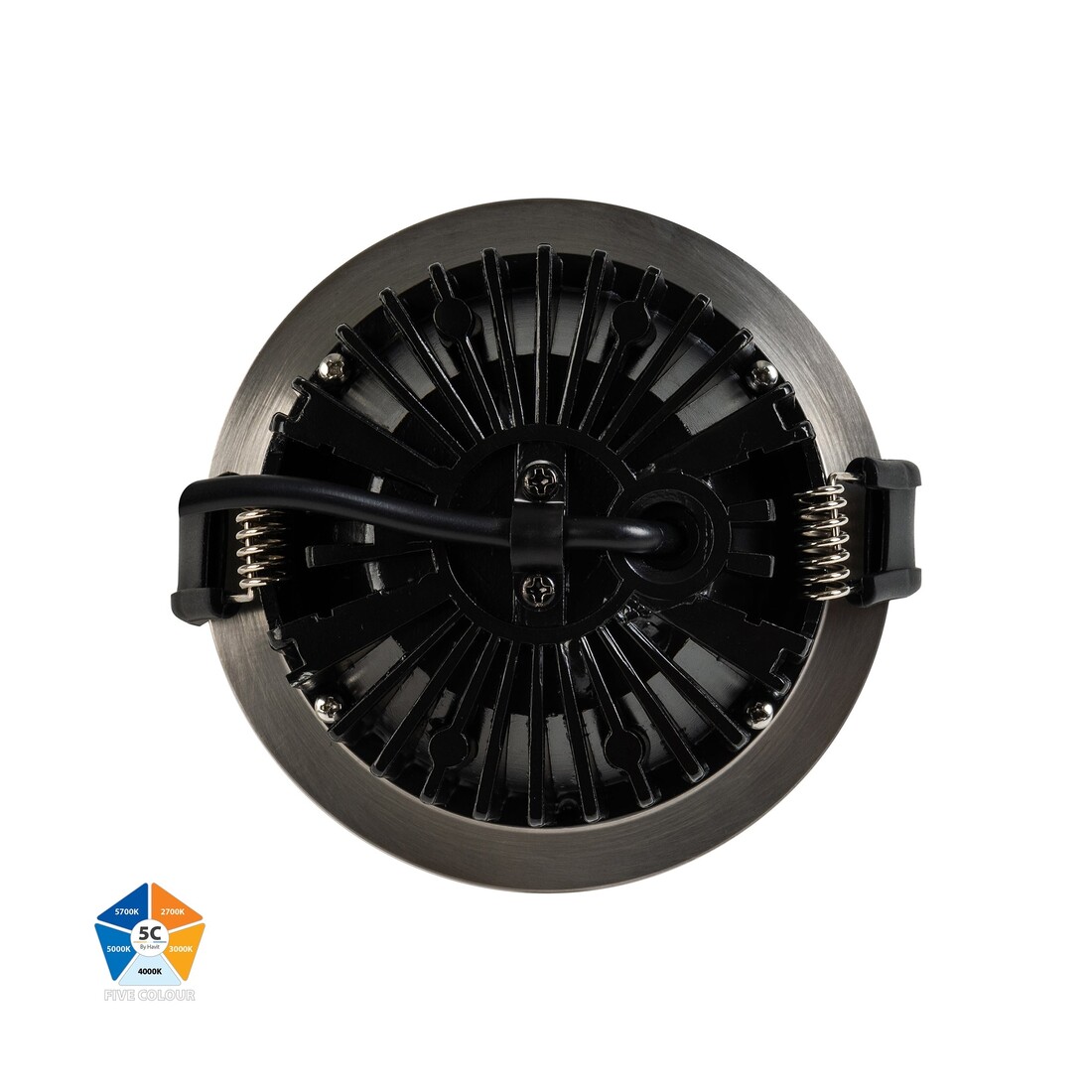

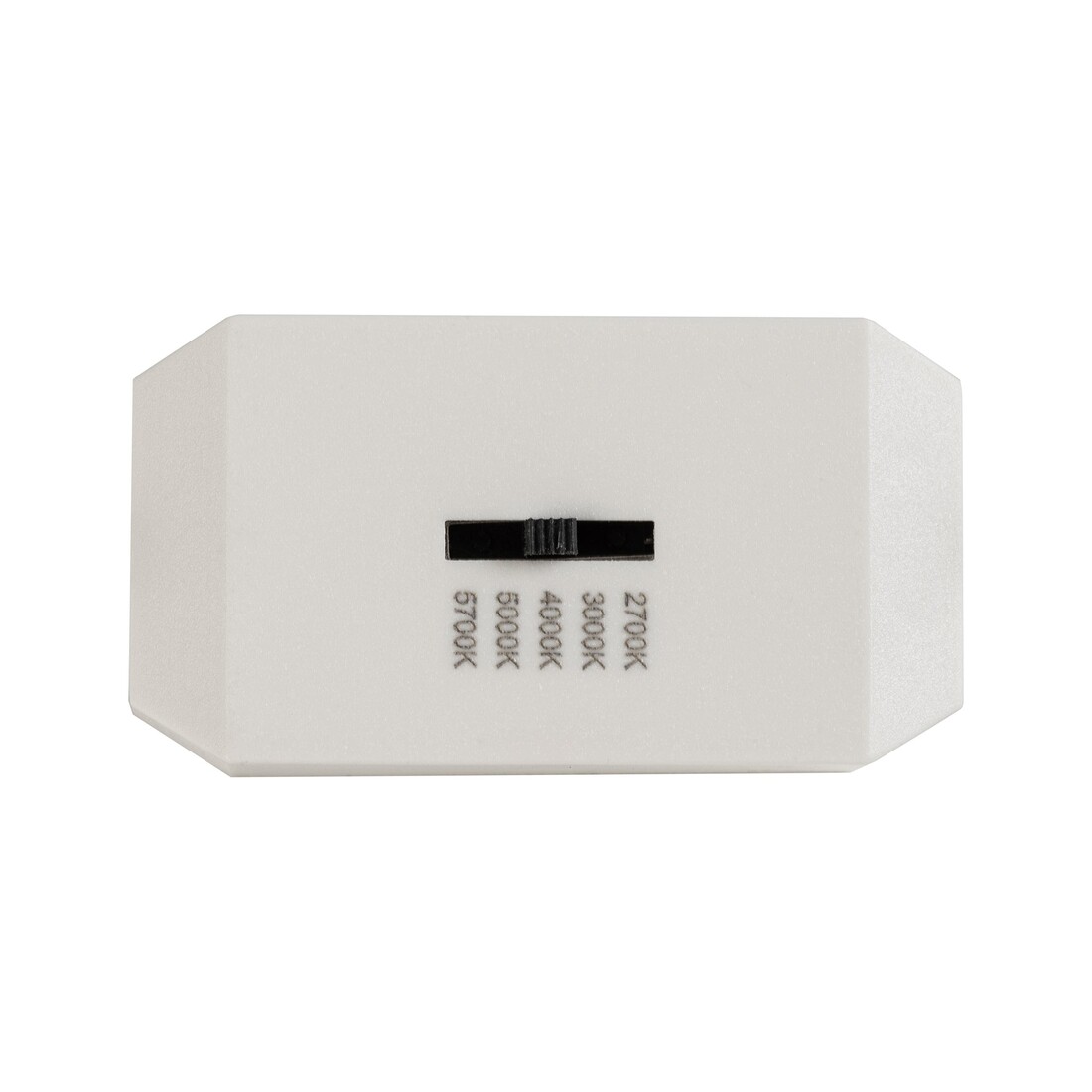

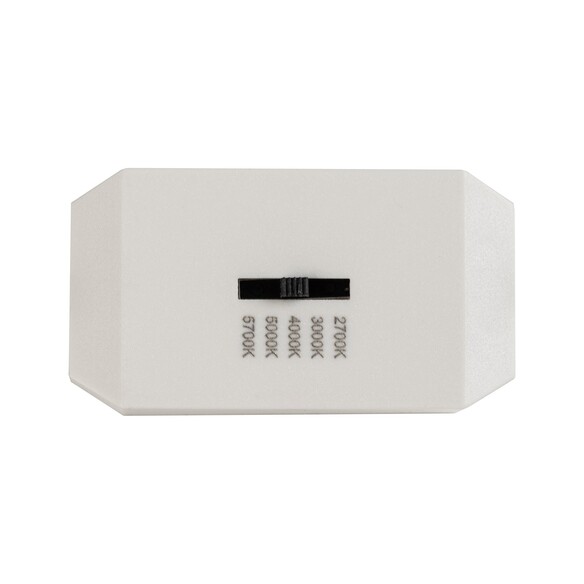

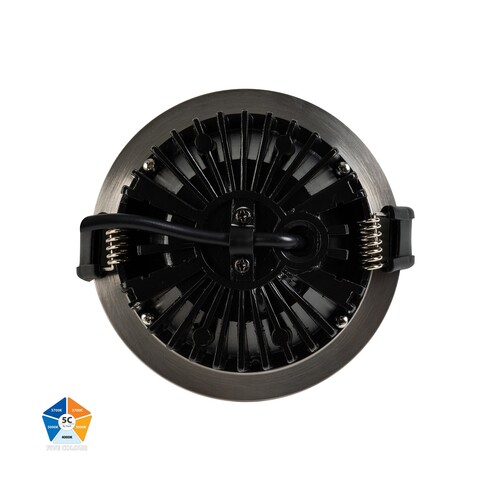

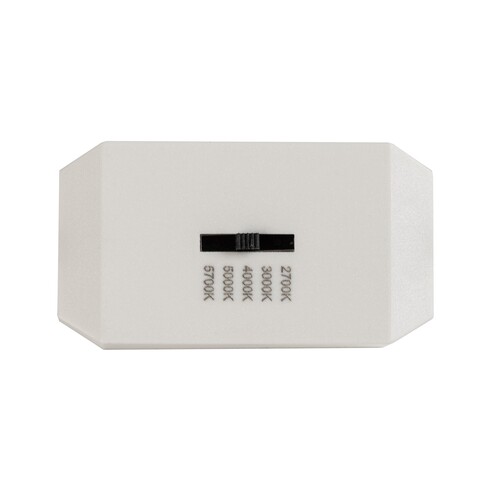

Five colour temperatures are selected with a switch on the back of the fitting: 2700K warm through 5700K cool. One SKU on the shelf covers warm ambient, neutral task and crisp commercial white without swapping lamps between rooms.
Triac dimming connects this downlight to building automation, scene plates and energy-saving profiles — not just a wall dimmer.
Key features
Cutout 90mm Mini format for tight ceiling spaces | Beam angle 60° Even spread for general lighting |
Colour temp 2700K – 5700K (5 settings) Switch on back of fitting | Dimming Triac Automation & scene control ready |
IP rating IP54 Splash-resistant for bathrooms & laundries | Power 12W integrated LED 240V input |
Colour temperature & light output
Select the white tone on the fitting — output varies slightly with each setting.
Technical specifications
| SKU | HV5530S-SS316 |
| Input voltage | 240V |
| Wattage | 12W |
| Light source | Integrated LED |
| Colour temperature | 2700K / 3000K / 4000K / 5000K / 5700K |
| Lumens | up to 1105 lm |
| Beam angle | 60° |
| Cutout | 90mm |
| IP rating | IP54 |
| Dimming | Triac |
| Material | Aluminium |
| Usage | Indoor |
Common questions
3-year replacement warranty
Supplied by Sintech Lighting — Australian supplier of Havit, Telbix, CLA and Oriel.
