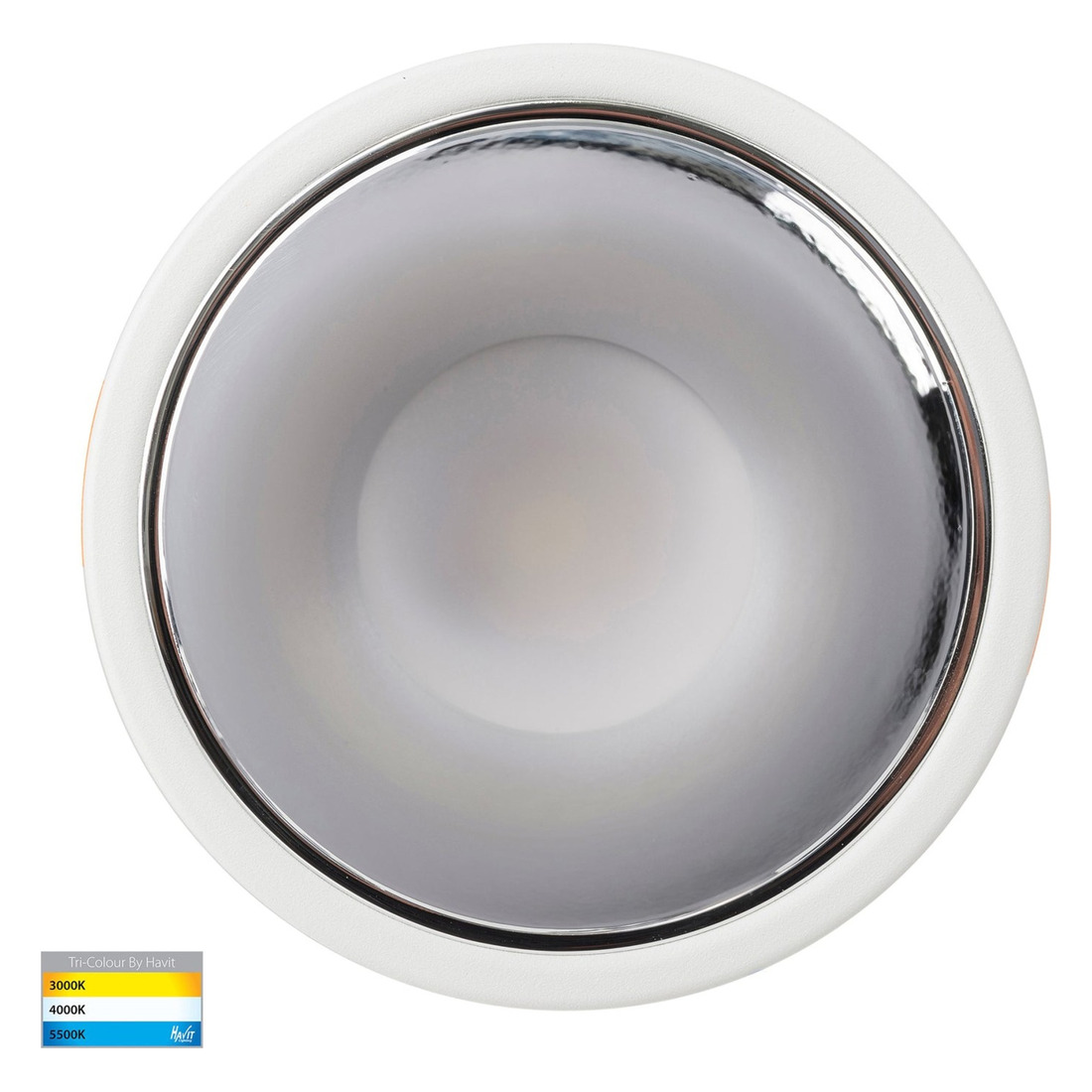

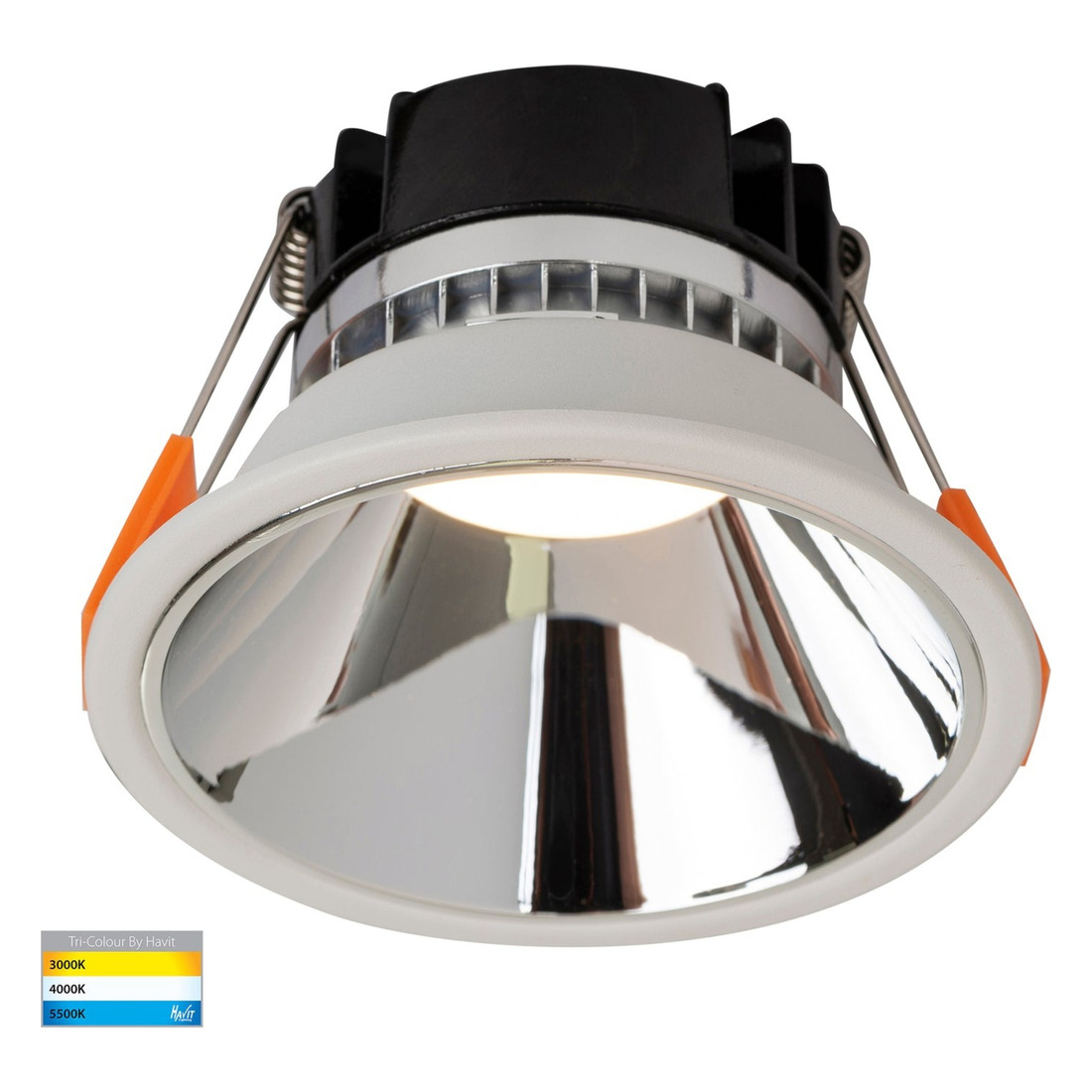

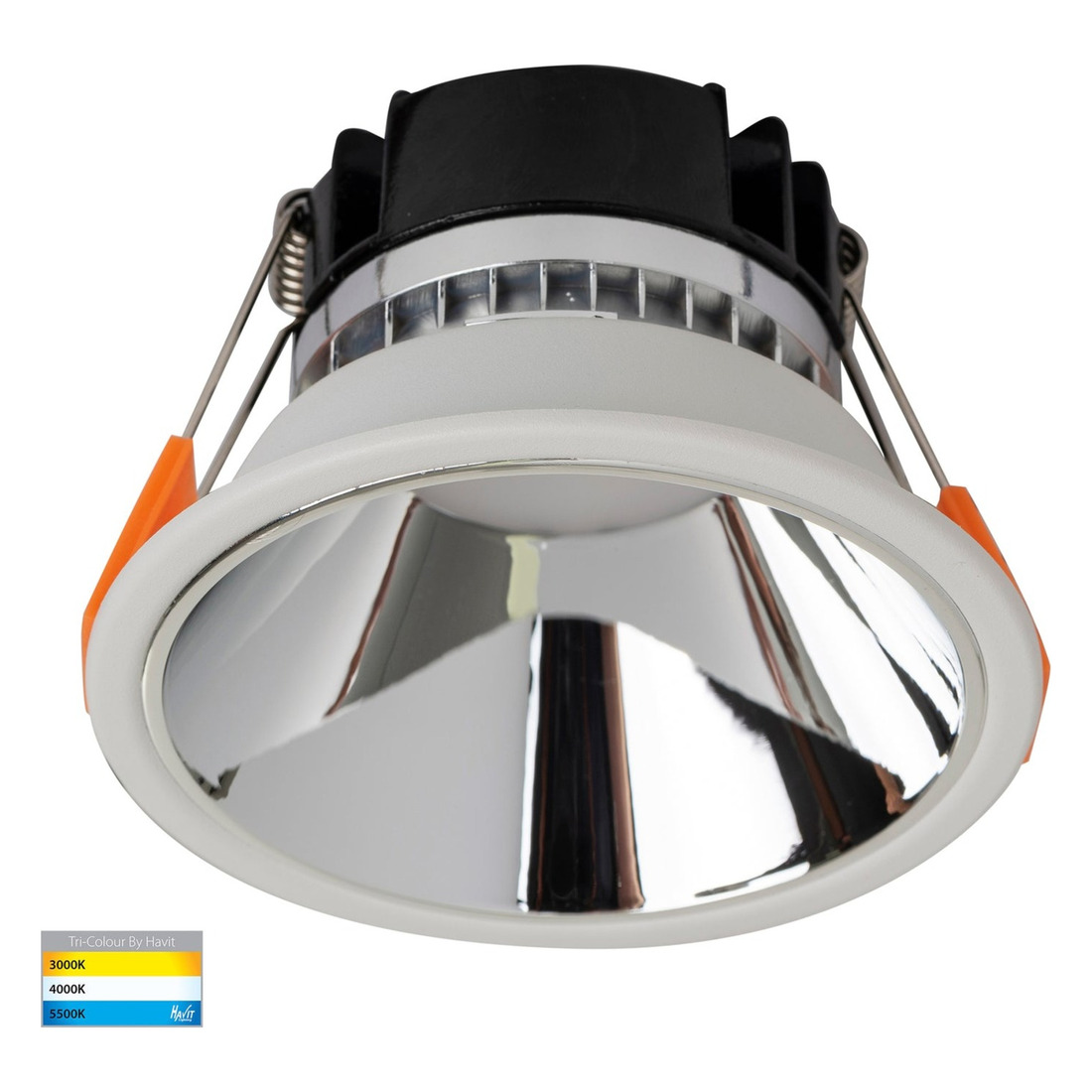

Gleam White with Chrome Insert Tri Colour Fixed Deep LED Downlight

Reference HV5528T-WC
In Stock
$53.91
inc-GST
  • Operation Voltage: 240V
  • Light Source: Integrated LED
  • Wattage: 9W
  • Colour Temperature: Tri-colour (3000K / 4000K / 5700K)
  • Lumens: up to 795 lm
  • Beam Angle: 90°
  • Cutout: 90mm
  • IP Rating: IP54
  • Dimming: Triac
  • Colour: White
  • Material: Aluminium
  • Usage: Outdoor
  • 3-year replacement warranty



At a glance

Gleam White with Chrome Insert Tri Colour Fixed Deep LED Downlight

HV5528T-WC  ·  90mm cutout · 90° beam · IP54 · Triac · up to 795 lm  ·  Sintech Lighting

What makes the HV5528T-WC different

The Havit HV5528T-WC is built for ceilings where a standard downlight is too large — only a 90mm cutout is required. That makes it a strong fit for bulkheads, narrow ceiling voids, cupboard lighting zones and anywhere you want light without a wide trim ring on show.

Inside the fixed white trim is a 9W integrated LED module — the lamp and driver are part of the fitting, so there are no GU10 or MR16 lamps to stock or replace.

Triac dimming connects this downlight to building automation, scene plates and energy-saving profiles — not just a wall dimmer.

Key features

Cutout

90mm

Mini format for tight ceiling spaces

Beam angle

90°

Even spread for general lighting

Colour temp

Tri-colour (3000K / 4000K / 5700K)

Dimming

Triac

Automation & scene control ready

IP rating

IP54

Splash-resistant for bathrooms & laundries

Power

9W integrated LED

240V input

Colour temperature & light output

Select the white tone on the fitting — output varies slightly with each setting.

Colour temperatureLight output
3000K680 lm
4000K795 lm
5500K745 lm

Technical specifications

SKUHV5528T-WC
Input voltage240V
Wattage9W
Light sourceIntegrated LED
Colour temperatureTri-colour (3000K / 4000K / 5700K)
Lumensup to 795 lm
Beam angle90°
Cutout90mm
IP ratingIP54
DimmingTriac
ColourWhite
MaterialAluminium
UsageOutdoor

Common questions

What cutout size does HV5528T-WC need?

A 90mm ceiling cutout. The fixed trim sits flush for a clean mini downlight look.

Is HV5528T-WC dimmable?

Yes — Triac dimming. Pair with a compatible DALI controller or gateway for scenes and automation.

What is the brightest output?

Up to 745 lm at 5500K. Warm settings (2700K) start around 680 lm.

Can I use this in a bathroom?

IP54 rating suits bathrooms, laundries and other interior areas where splash resistance is required.

Do I need to buy lamps separately?

No. HV5528T-WC has a built-in 9W LED module — the light source is integrated in the fitting.

What beam spread does it give?

90° beam angle for practical general-light coverage from a compact trim.

3-year replacement warranty

Supplied by Sintech Lighting — Australian supplier of Havit, Telbix, CLA and Oriel.
