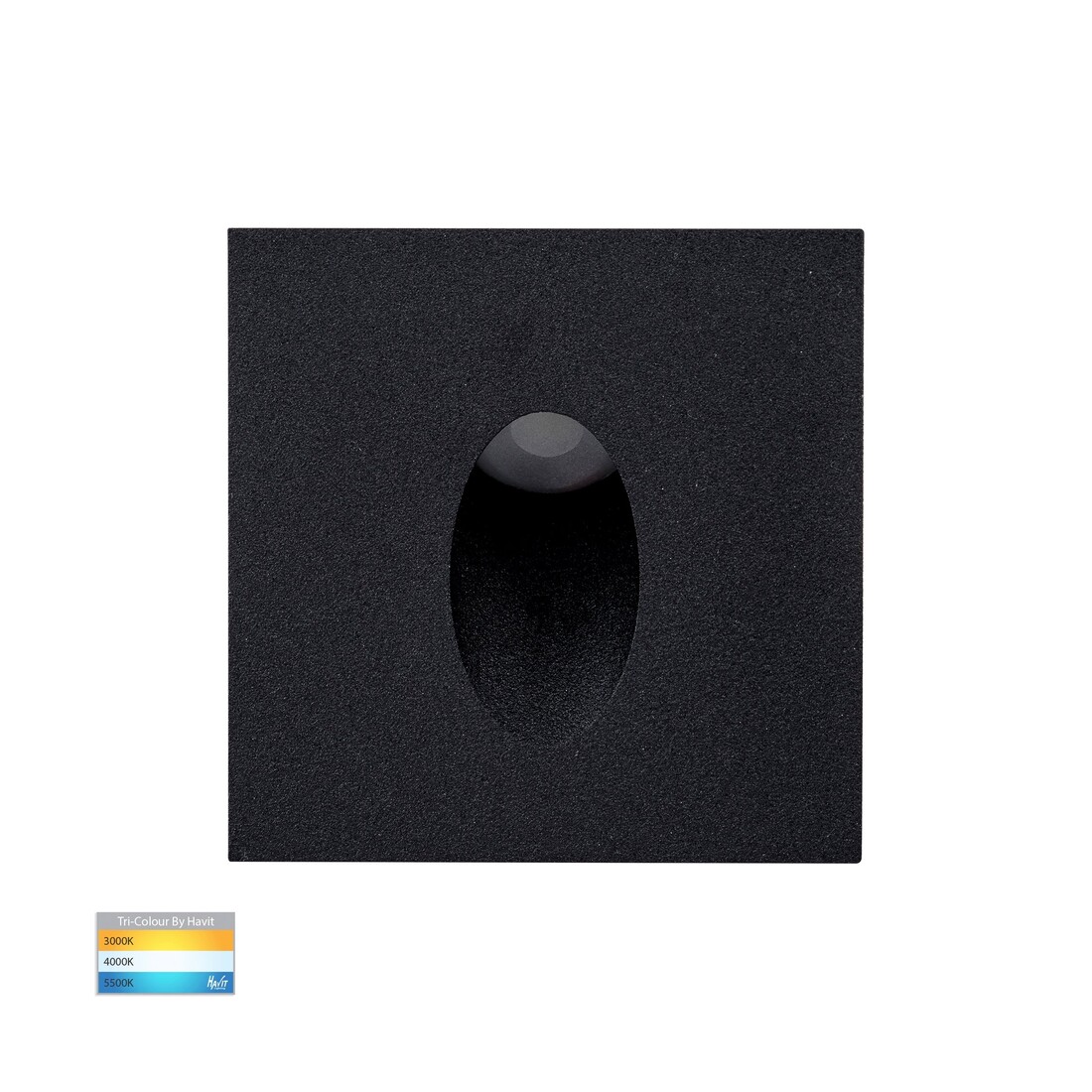

HV3216T-Black-12V - Mini Reces Black Square TRI Colour Recessed LED Step Light
- Operation Voltage: 12V DC
- Light Source: Integrated LED
- Wattage: 1W
- Colour Temperature: Tri-colour (3000K / 4000K / 5700K)
- Cutout: 50mm
- IP Rating: IP67
- Dimming: Dimmable
- Colour: Black
- Material: Aluminium
- Usage: Outdoor
- 3-year replacement warranty
At a glance
Black · 1W mini recessed downlight · Dimmable
HV3216T-BLK-12V · 50mm cutout · IP67 · Dimmable · Havit Lighting

What makes the HV3216T-BLK-12V different
The Havit HV3216T-BLK-12V is built for ceilings where a standard downlight is too large — only a 50mm cutout is required. That makes it a strong fit for bulkheads, narrow ceiling voids, cupboard lighting zones and anywhere you want light without a wide trim ring on show.
Inside the fixed black trim is a 1W integrated LED module — the lamp and driver are part of the fitting, so there are no GU10 or MR16 lamps to stock or replace.
Dimmable dimming connects this downlight to building automation, scene plates and energy-saving profiles — not just a wall dimmer.
Key features
Cutout 50mm Mini format for tight ceiling spaces | Colour temp Tri-colour (3000K / 4000K / 5700K) |
Dimming Dimmable Automation & scene control ready | IP rating IP67 Splash-resistant for bathrooms & laundries |
Power 1W integrated LED 12V DC input |
Technical specifications
| SKU | HV3216T-BLK-12V |
| Input voltage | 12V DC |
| Wattage | 1W |
| Light source | Integrated LED |
| Colour temperature | Tri-colour (3000K / 4000K / 5700K) |

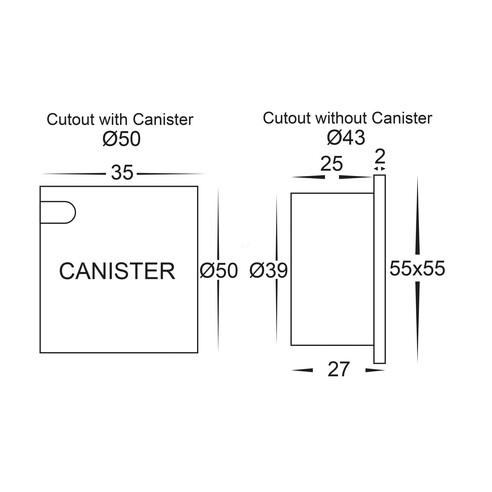

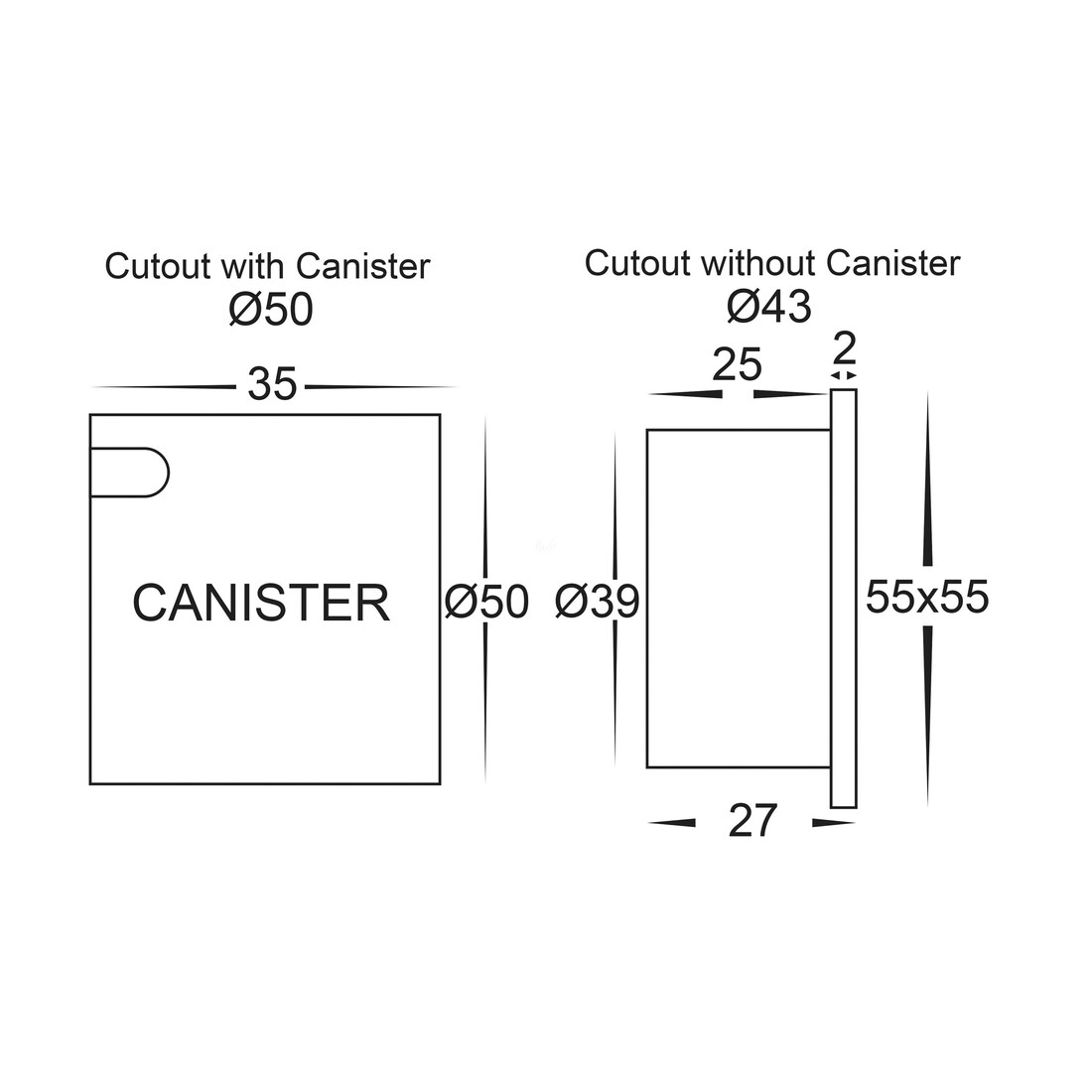

| Cutout | 50mm |
| IP rating | IP67 |
| Dimming | Dimmable |
| Colour | Black |
| Material | Aluminium |
| Usage | Outdoor |
Common questions
What cutout size does HV3216T-BLK-12V need?
A 50mm ceiling cutout. The fixed trim sits flush for a clean mini downlight look.
Is HV3216T-BLK-12V dimmable?
Yes — Dimmable dimming. Pair with a compatible DALI controller or gateway for scenes and automation.
Can I use this in a bathroom?
IP67 rating suits bathrooms, laundries and other interior areas where splash resistance is required.
Do I need to buy lamps separately?
No. HV3216T-BLK-12V has a built-in 1W LED module — the light source is integrated in the fitting.
3-year replacement warranty
Supplied by Sintech Lighting — Australian supplier of Havit, Telbix, CLA and Oriel.
