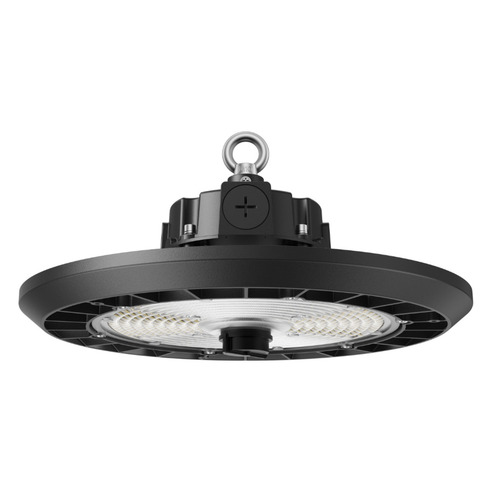

120W, 96W & 72W Selectable Hi Bay IP65 Dual CCT 4K & 5K
Reference
R3117
In Stock
$228.95
Rapid LED 120W, 96W & 72W Selectable Hi Bay IP65 Dual CCT 4K & 5K — Hi-Bay's. Available from Sintech Lighting.
- Wattage: Wattage Selectable(120W / 96W / 72W)
- Colour Temperature: DUAL (4000K / 5000K)
- Lumens: 72W - 60% : 10,200 - 11,100Lm 96W - 80% : 13,600 - 14,800Lm 120W - 100% : 17,000Lm - 18,500Lm
- IP Rating: IP65
- CRI: >80
- Dimmable: Yes - 0-10V Dimmable
- Model: R3117
R3117 - 120W, 96W & 72W Selectable Hi Bay IP65 Dual CCT 4K & 5K
Rapid LED 120W, 96W & 72W Selectable Hi Bay IP65 Dual CCT 4K & 5K — Hi-Bay's. Available from Sintech Lighting.
Specifications
| Wattage | Wattage Selectable(120W / 96W / 72W) |
|---|---|
| Colour Temperature | DUAL (4000K / 5000K) |
| Lumen Output | 72W - 60% : 10,200 - 11,100Lm 96W - 80% : 13,600 - 14,800Lm 120W - 100% : 17,000Lm - 18,500Lm |
| Lumen Output / W | 160Lm / W |
| CRI | >80 |
| Fixture Colour | Black |
| Beam Angle° | 115° |
| Dimmable | Yes - 0-10V Dimmable |
| IP Rating | IP65 |
| IK Rating | IK08 |
| LED Type | SMD 2835 |
| Lifetime Expectancy | L80/B10 >60,000Hrs |
| Power Supply | Sosen Class I Constant Current Driver |
| Power Factor | >0.95 |
| Voltage | 220 - 240V AC |
| Frequency | 50 - 60Hz |
| Working Temperature | -30°C ~+ 50°C |
| Product Dimensions | 173mm (H) x 273mm Ø |
| Product Materials | Housing - Powder Coated Aluminium Alloy Optics - Polycarbonate Cover |
| Fitting Protection Classification | Class I |
| Intelligent Control | Zhaga Microwave Sensor Casambi Module Indent Only - PIR Sensor / DALI |
| Additional Product Options | R3148-MS : Microwave Sensor R3148-CAS : Casambi Module R3148-REMOTE : Remote to suit Sensor R3117-REFLECTOR-AL : Aluminium Reflector R3117-REFLECTOR-PC : PC Reflector with Lid R3145 : ±30° Adjustable Mounting Bracket |
| Mounting Options | Suspension Mount - Loop Hanging |
| Included | 1500mm Flex & Plug |
| Net Weight | 1.9±0.3kg |
| Warranty | 5 Years( 2 Years Replacement & Labour / 3 Years Replacement Only ) |
| Standards | AS/NZS 60598.1AS/NZS 60598.2.1AS/NZS 61347.1AS/NZS 61347.2.13AS CISPR 15 |
Downloads
Supplied by Rapid LED. Product information sourced from the Rapid LED catalogue.
